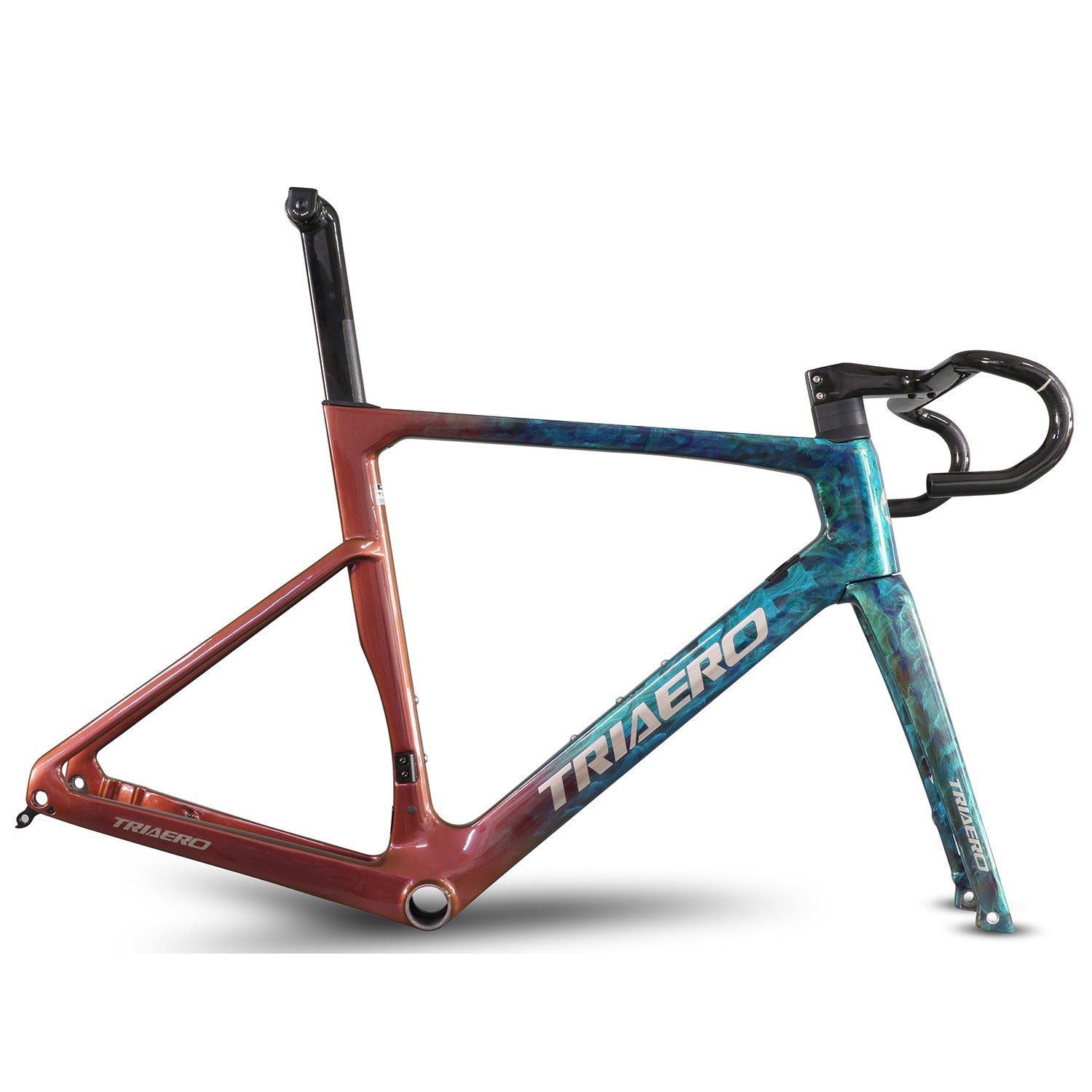

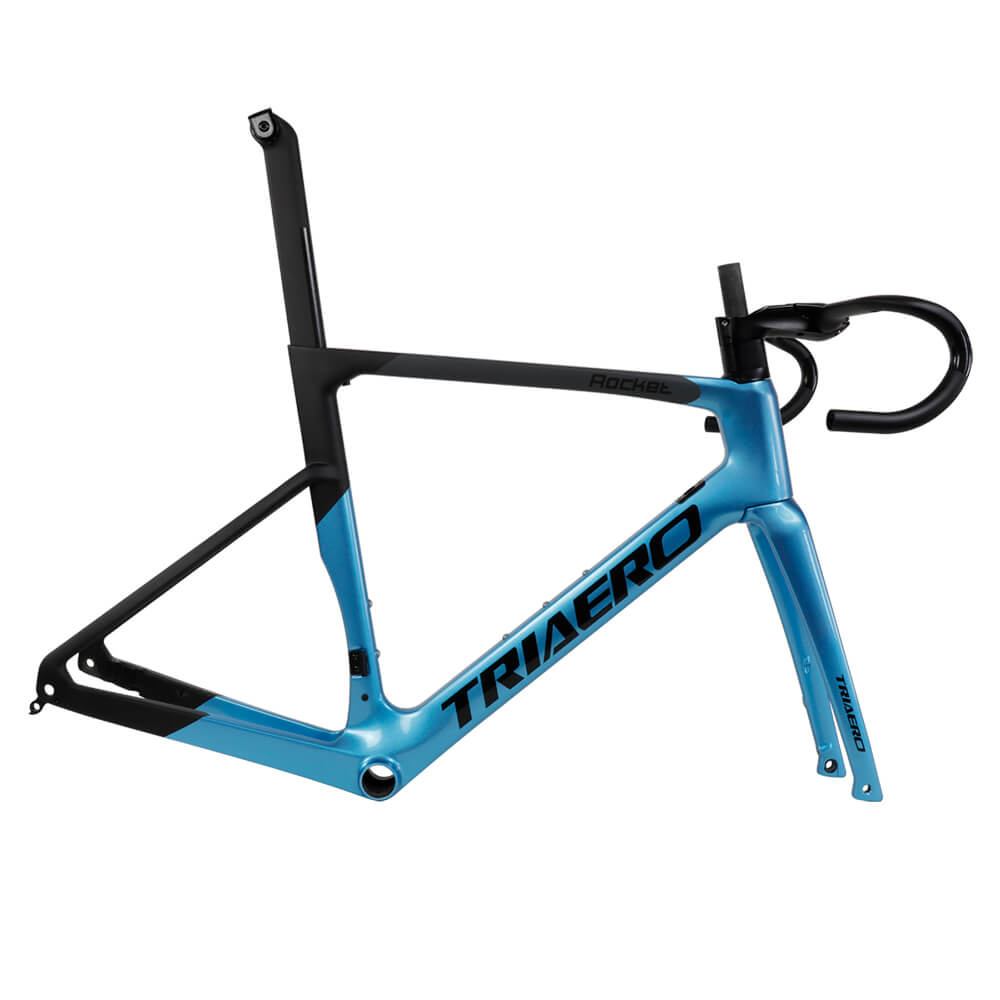

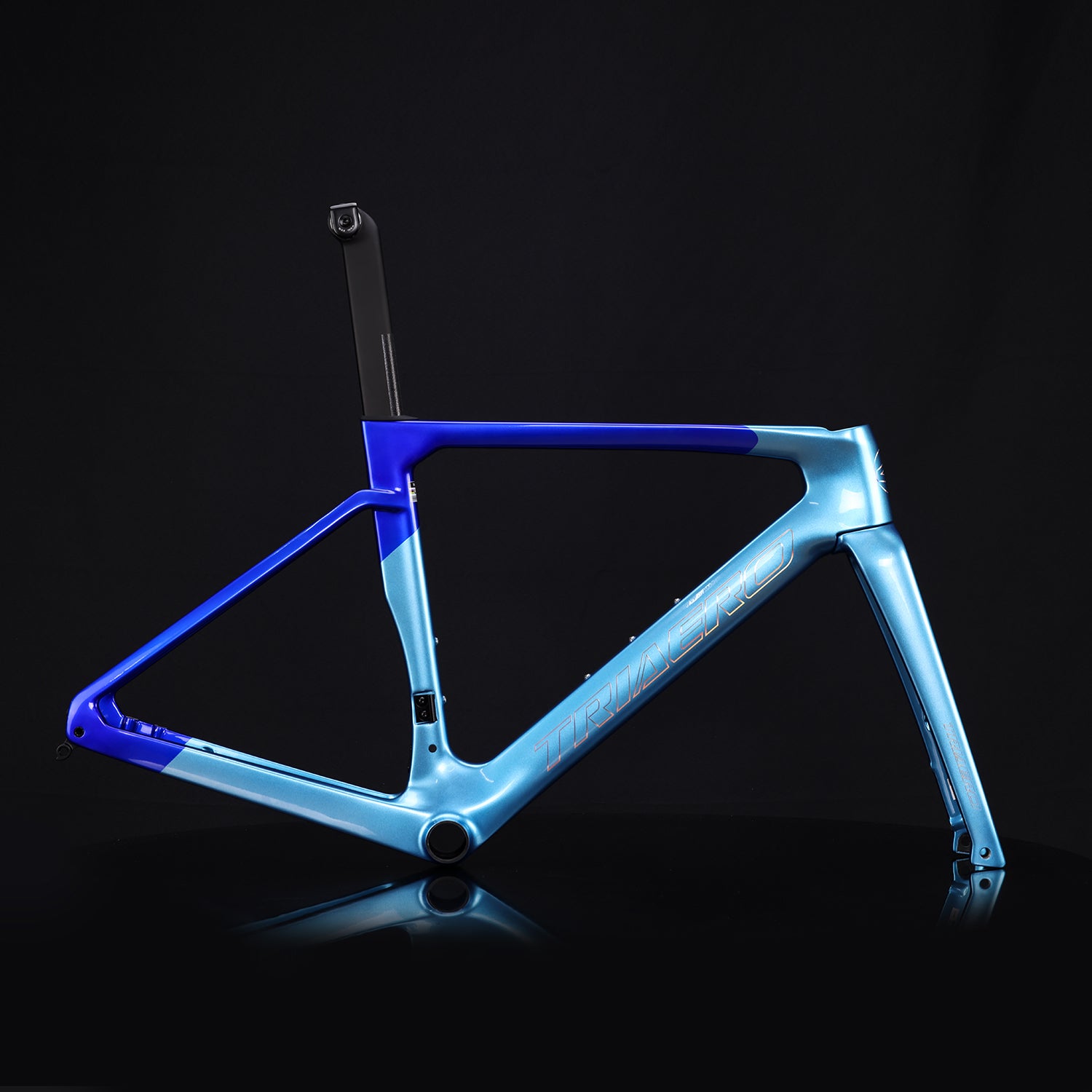

UCI Disc Road Frame A9

Introduction

Crafted with precision and utilizing advanced carbon fiber technology, the A9 frame embodies a perfect balance of lightweight construction and exceptional strength. Its aerodynamic design enhances speed and efficiency, making it an ideal choice for competitive racing or demanding road cycling. The frame's geometry is meticulously engineered to provide optimal comfort, handling, and power transfer, ensuring a superior riding experience.

Specification:

Model: A9

Type: Road Bike Disc Brake Frame

Material: Carbon Fiber Toray T700 & T800

Weave: Matt

Weight: Frame-1090g ;  Fork-410g ;  Seat Post-320g (52cm)

Available Size: 46 / 49 / 52 / 54 / 56 / 58cm

BB: BB86

Cable: All Internal Cable

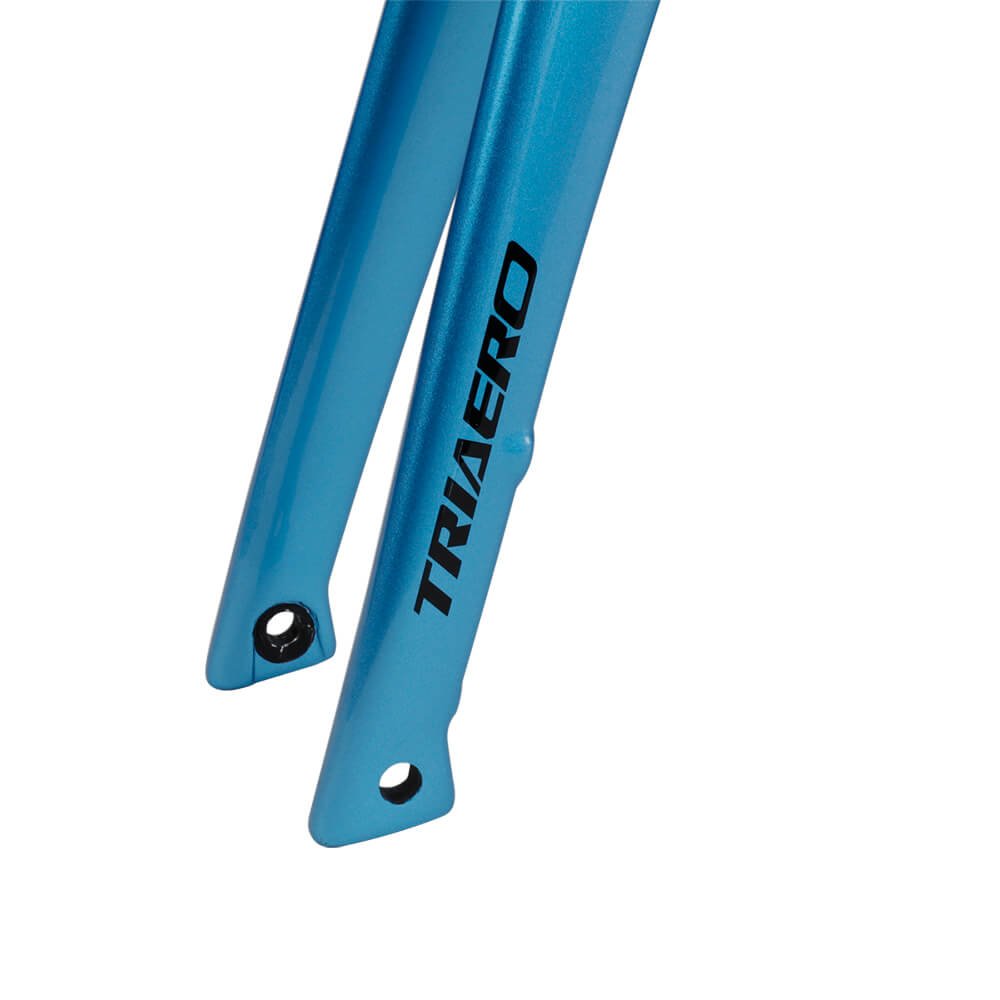

Fork End: 12 x 100mm

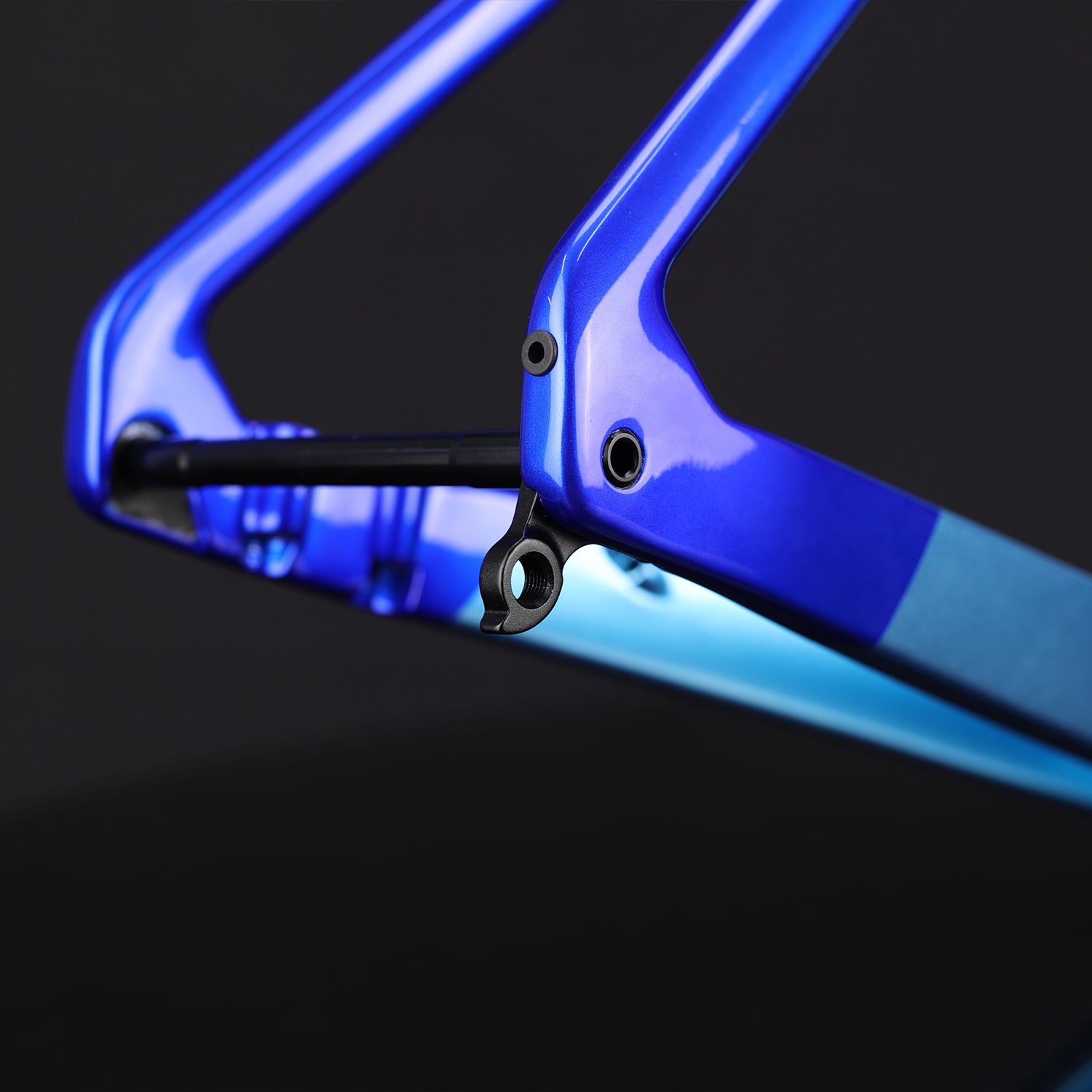

Rear Spacing: 12 x 142mm

Disc Front and Rear: Front 160, Rear 140, Flat Mount

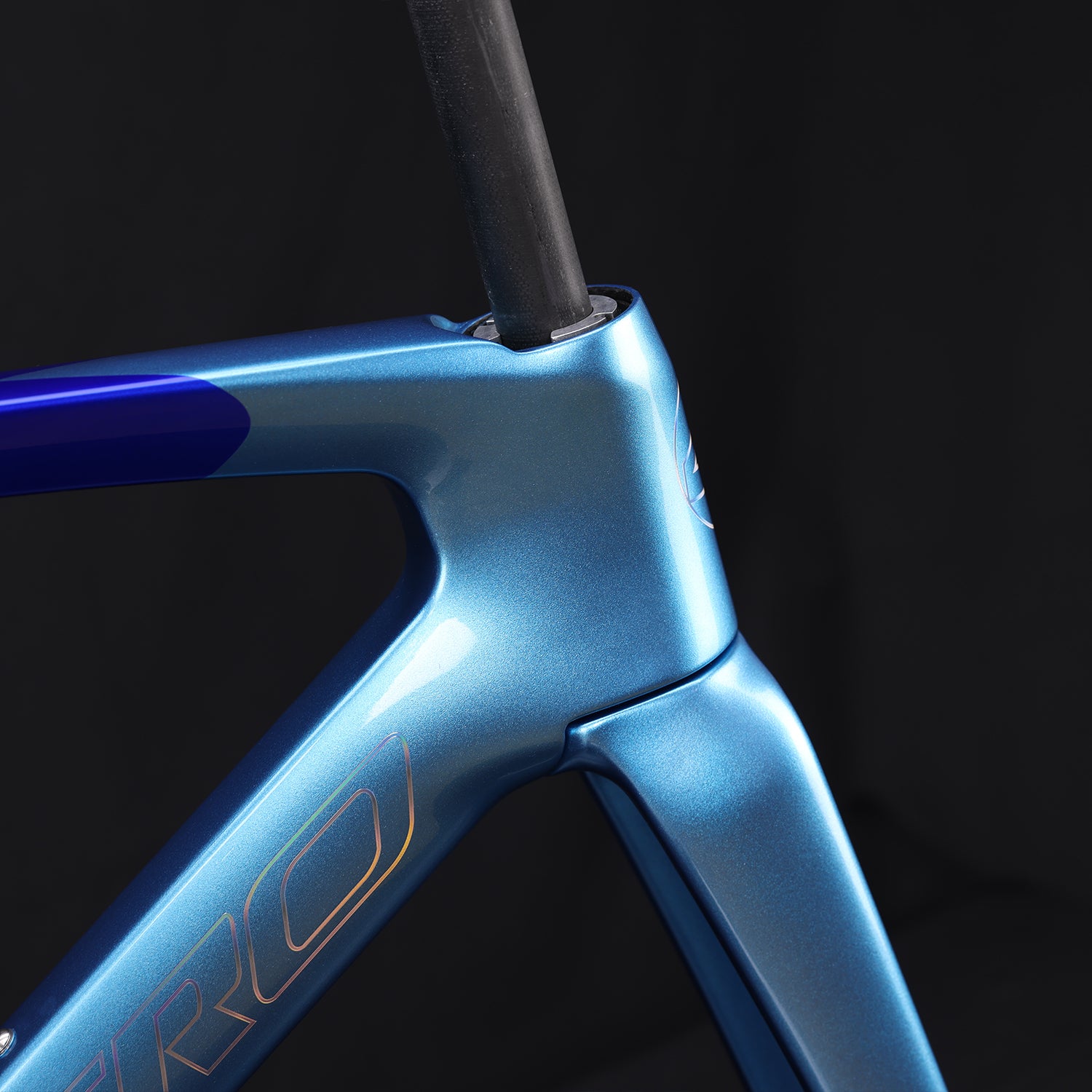

Headset Size: Top 1-1/2" , Down 1-1/2"

Handlebar: 400x90mm / 420x100mm / 440x110mm

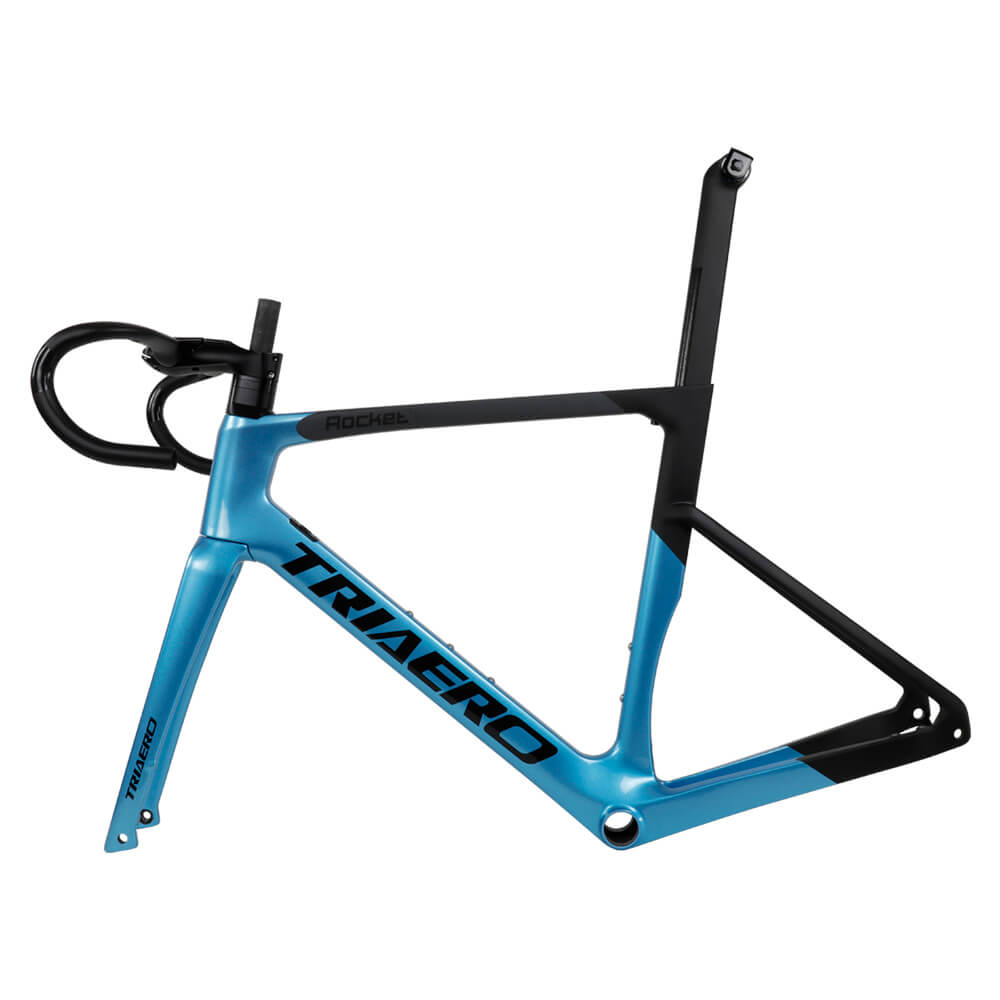

Package Included: 1 x Frame + 1 x Fork + 1 x Seat Post + 1 Headset + 1 x Integrated Handlebar + 2 x Thru Axles + 1 x Hanger

Features:

Aerodynamic Design:

The ICAN A9 frame boasts an aerodynamic design meticulously crafted to not only minimize drag but also to optimize airflow, resulting in a substantial enhancement in overall speed. This feature positions it as the ultimate choice for cyclists aspiring for heightened performance, ensuring a seamless blend of cutting-edge aerodynamics and superior speed capabilities.

Lightweight Construction Carbon Fiber T800 & T700:

With a focus on minimizing weight without compromising strength, the A9 frame is constructed using advanced materials, resulting in a lightweight build that enhances agility and responsiveness during rides.

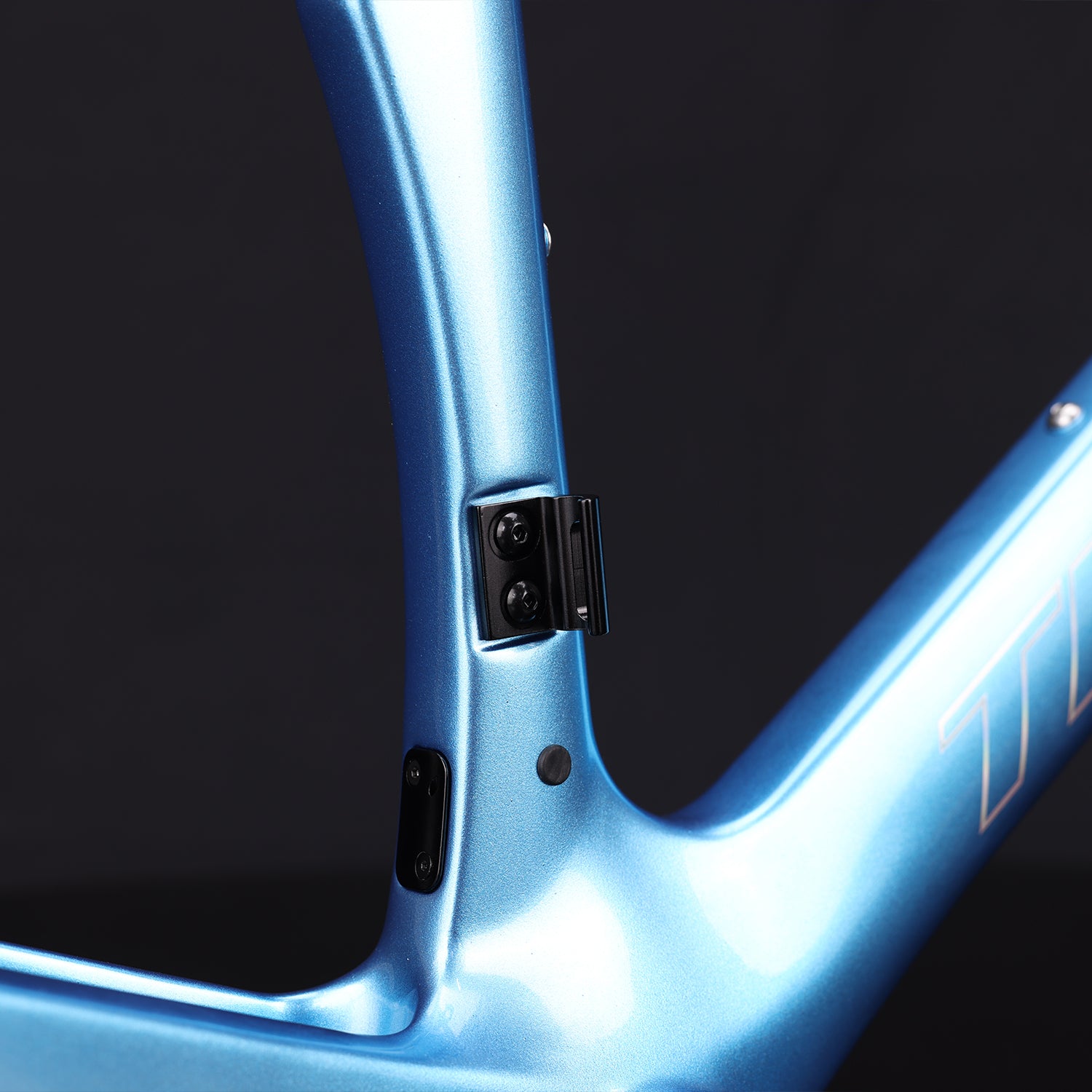

Internal Cable Routing：

The key benefits of a full internal cable routing system include enhanced aerodynamics, reduced air resistance, and an overall sleek and clean appearance. By concealing the cables within the frame, the bike not only cuts through the wind more efficiently but also presents a polished and streamlined aesthetic. Additionally, the internal routing minimizes exposure to external elements, contributing to improved durability and reduced maintenance requirements. This design choice not only prioritizes performance but also elevates the overall aesthetics of the ICAN A9 road bike, making it an ideal choice for cyclists who appreciate both form and function.

Multifunctional Compatibility:

The ICAN A9 frame is designed with versatility in mind, offering compatibility with both mechanical and electronic groupsets. This feature allows cyclists to customize their riding experience based on personal preferences and specific cycling regulations.

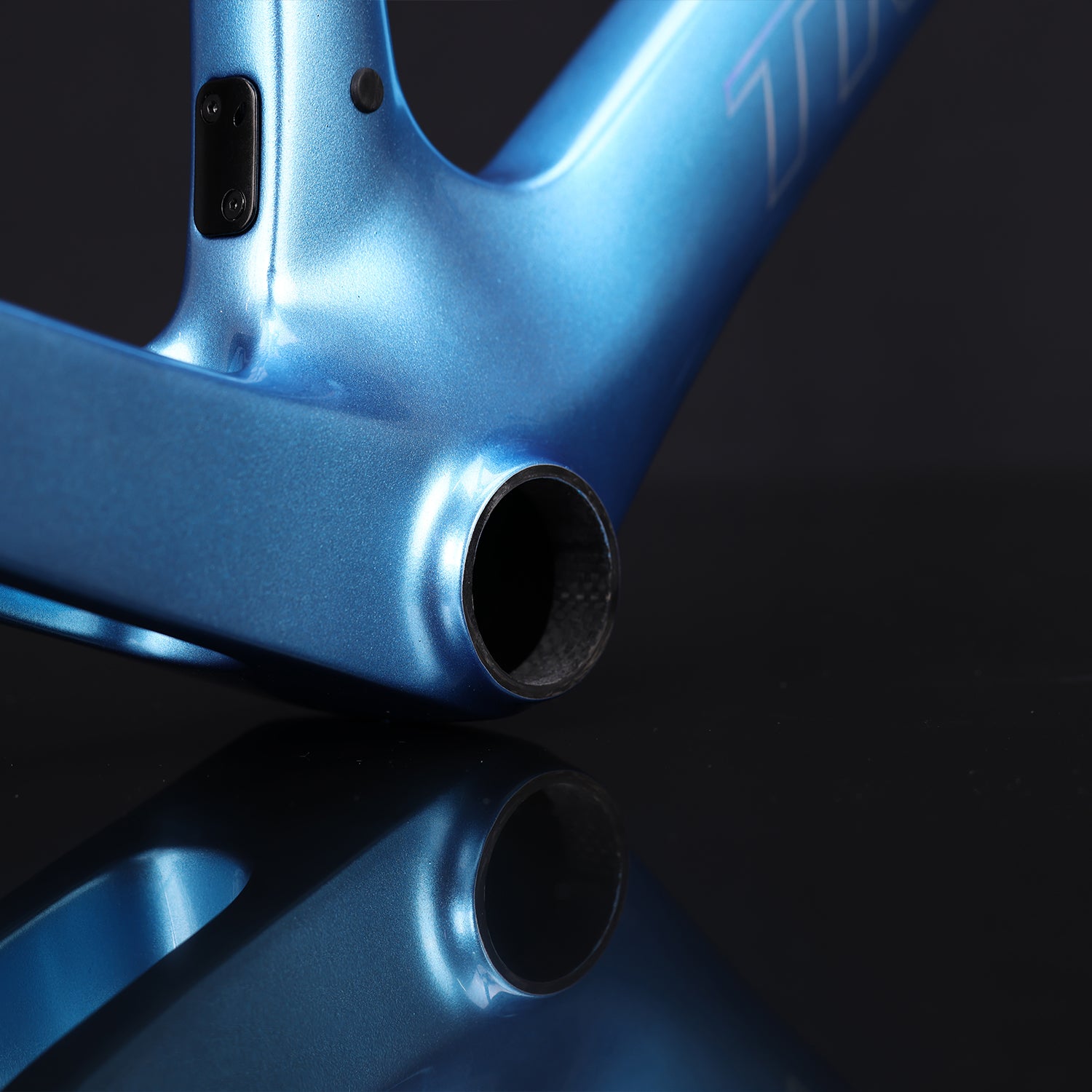

Stiff And Equipped With BB86 Bottom Bracket:

The frame's stiffness ensures efficient power transfer from the rider to the wheels, translating into a more responsive and energy-efficient cycling experience. The BB86 bottom bracket standard offers several advantages in the realm of cycling. This configuration, characterized by an 86.5mm-wide shell with bearings pressed directly into it, enhances overall stiffness and power transfer in the bicycle frame. The wider stance of the BB86 provides a robust platform for the crankset, reducing flex and ensuring efficient energy transmission from the rider to the drivetrain.

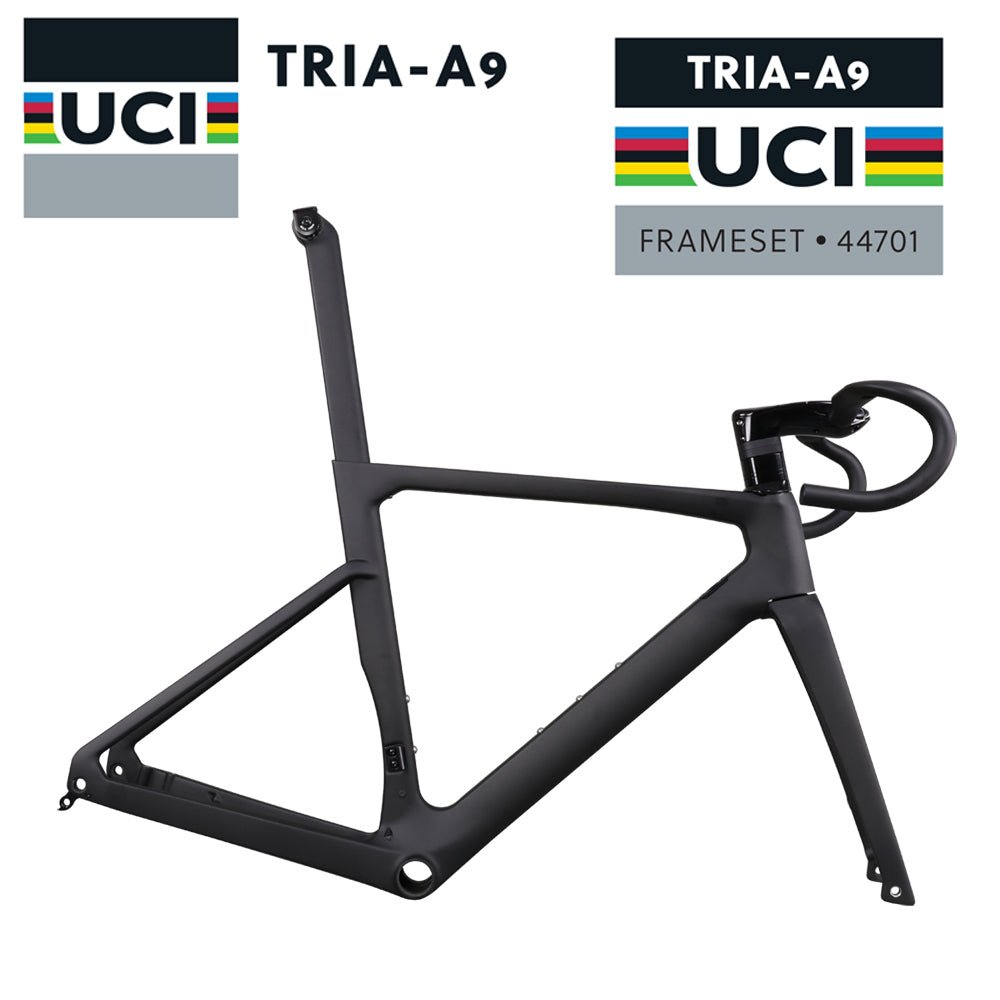

UCI Certification：

The ICAN A9 frame is certified and approved by the Union Cycliste Internationale (UCI), which governs international bicycle racing. Only products that pass rigorous testing receive this certification, allowing them to be used in UCI-sanctioned road races.

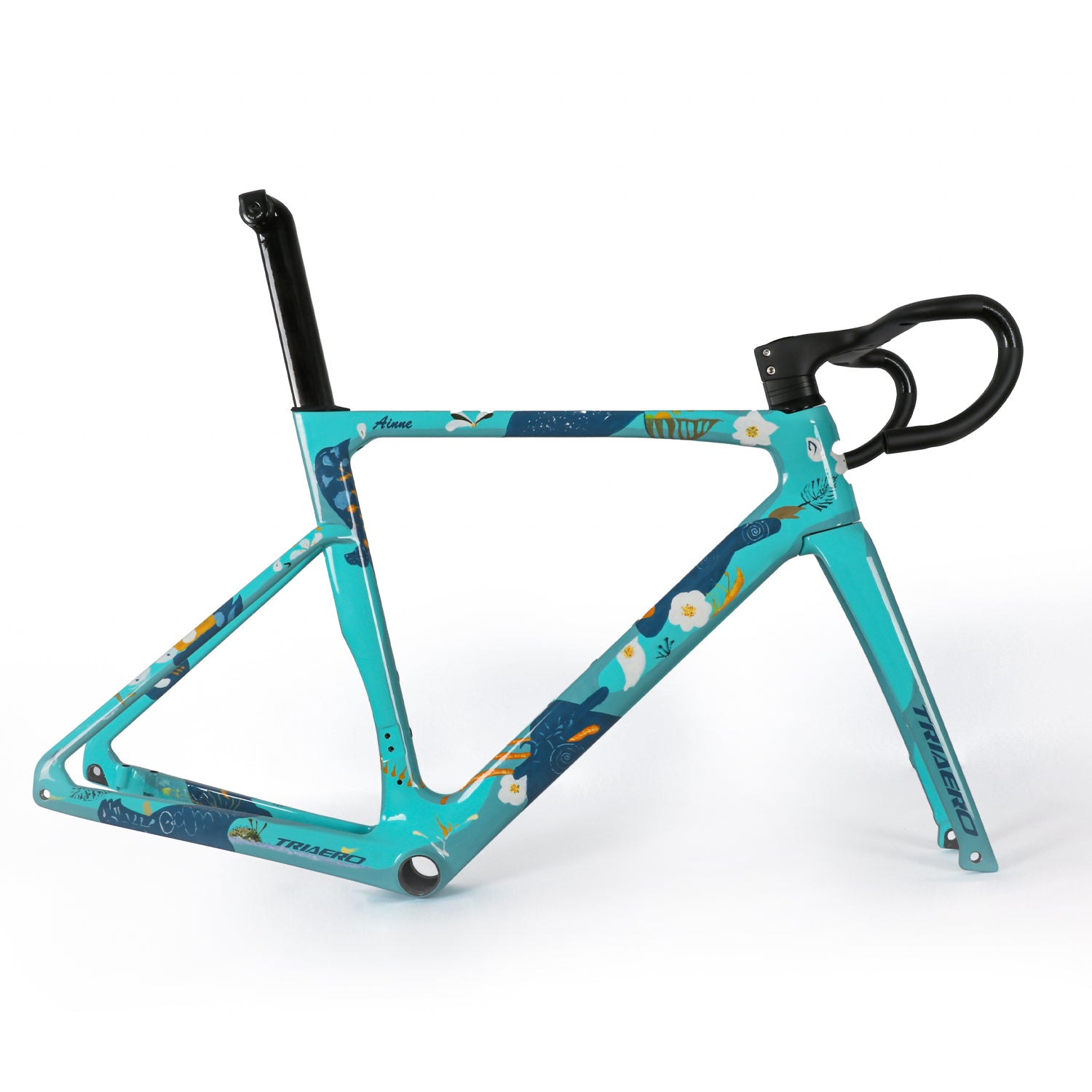

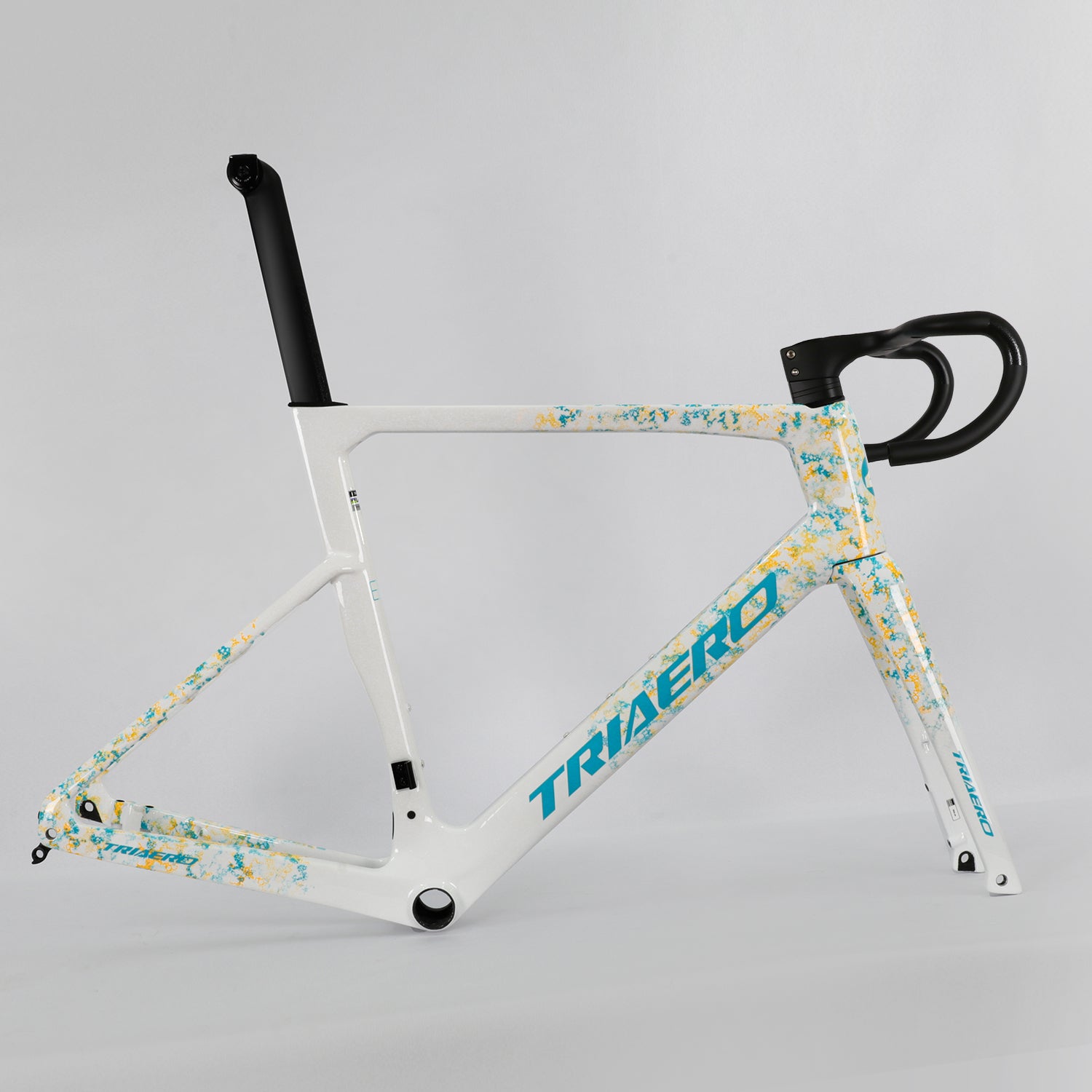

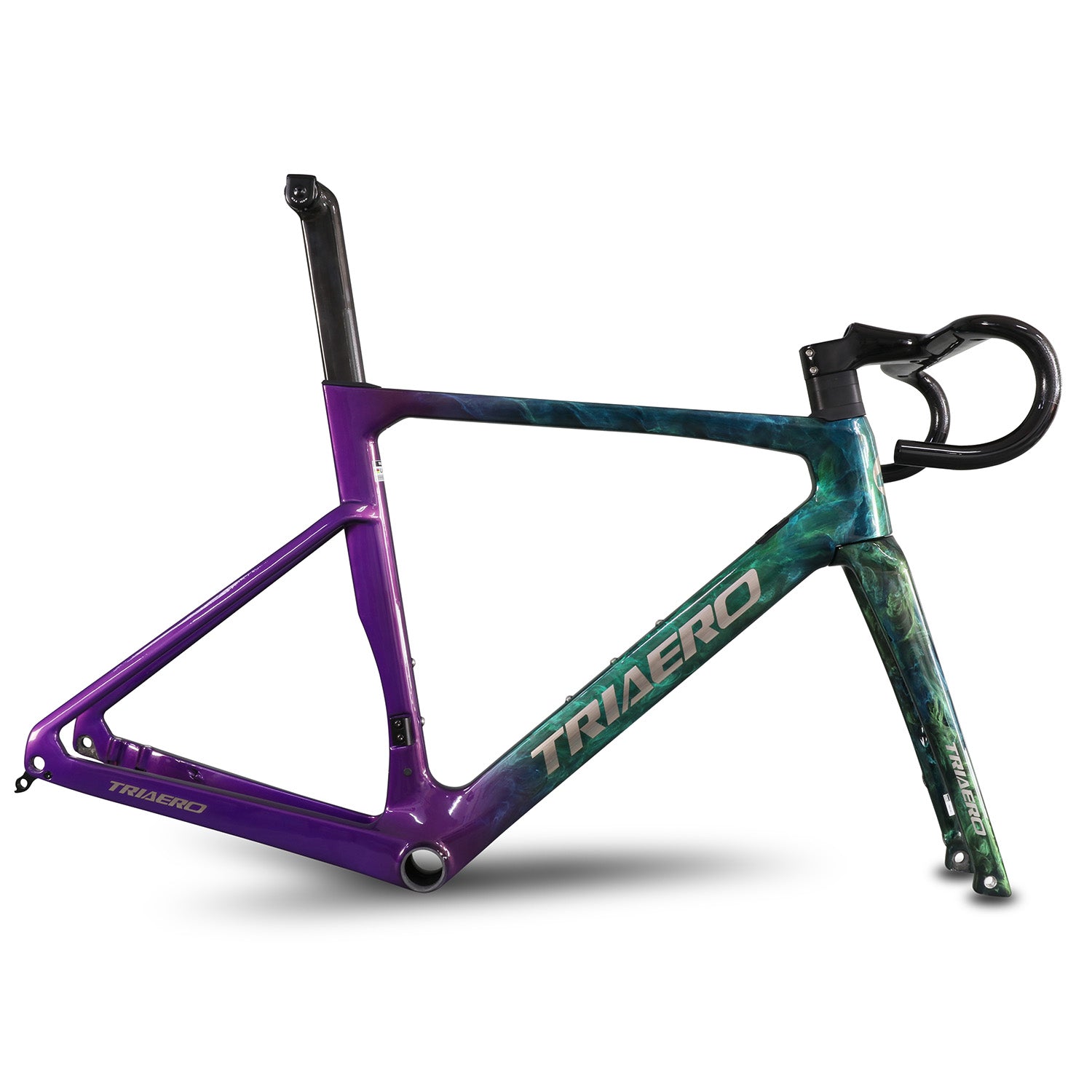

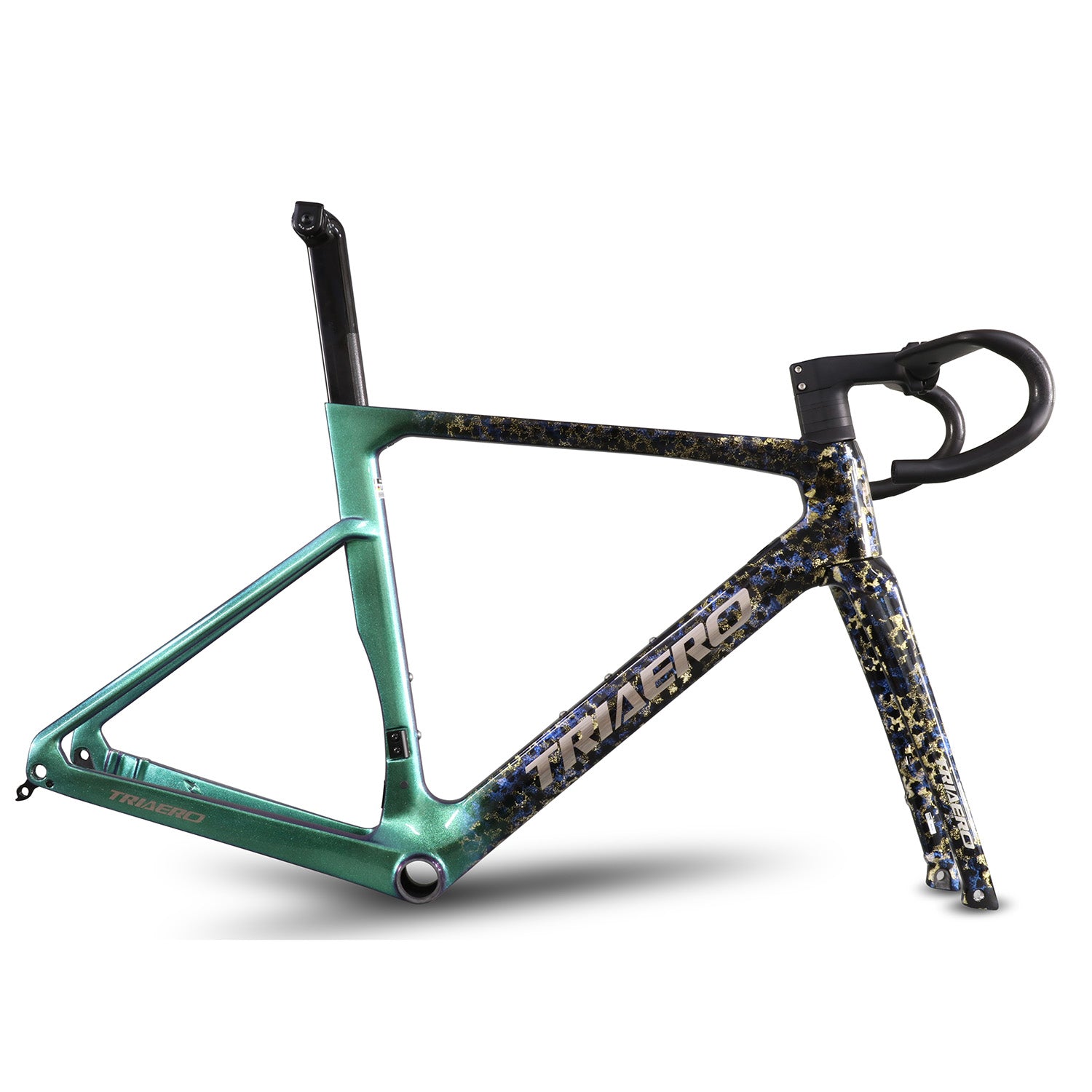

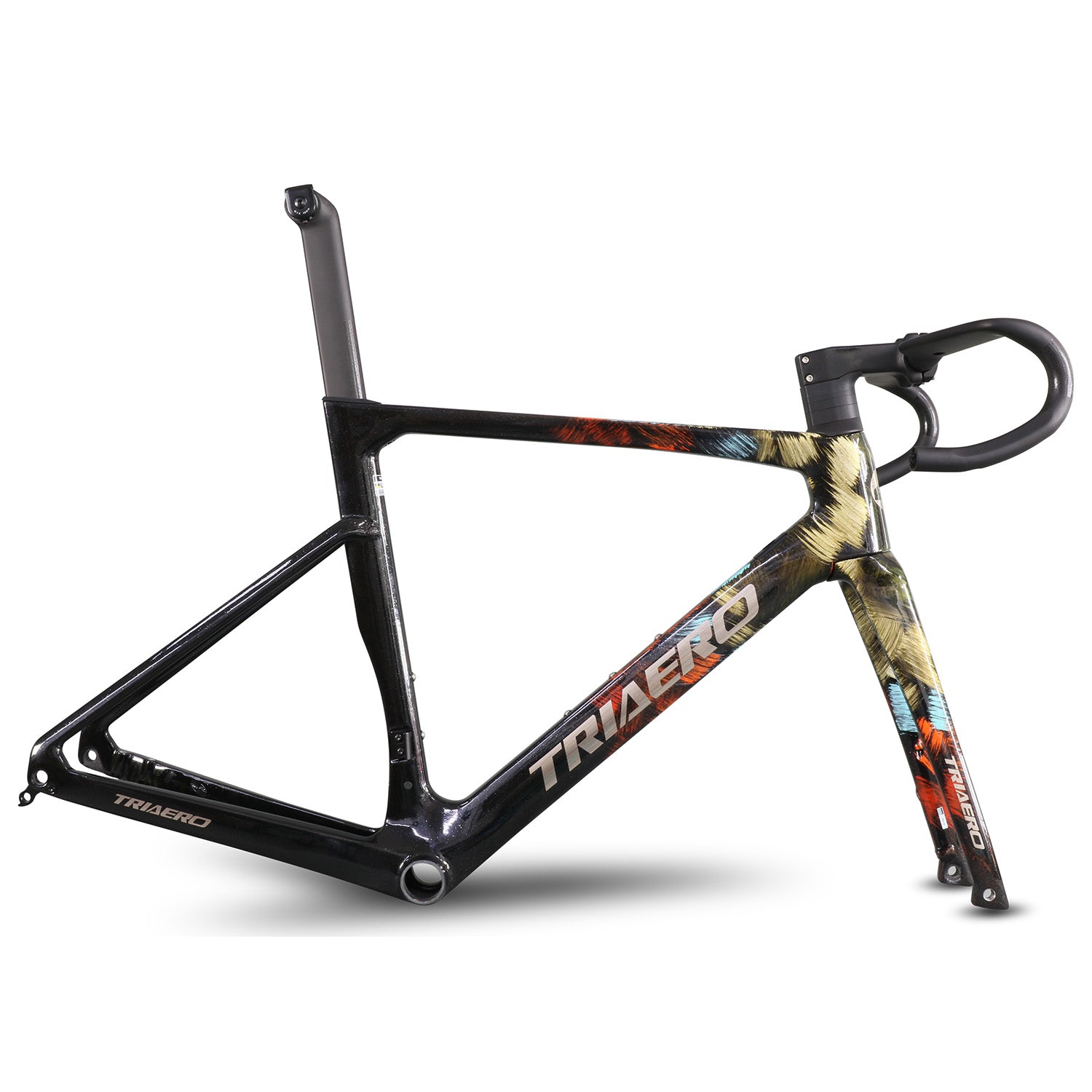

Custom Painting Services

We have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out. Visit our painting website at icancustompaint.com to bring your dream design to life.
