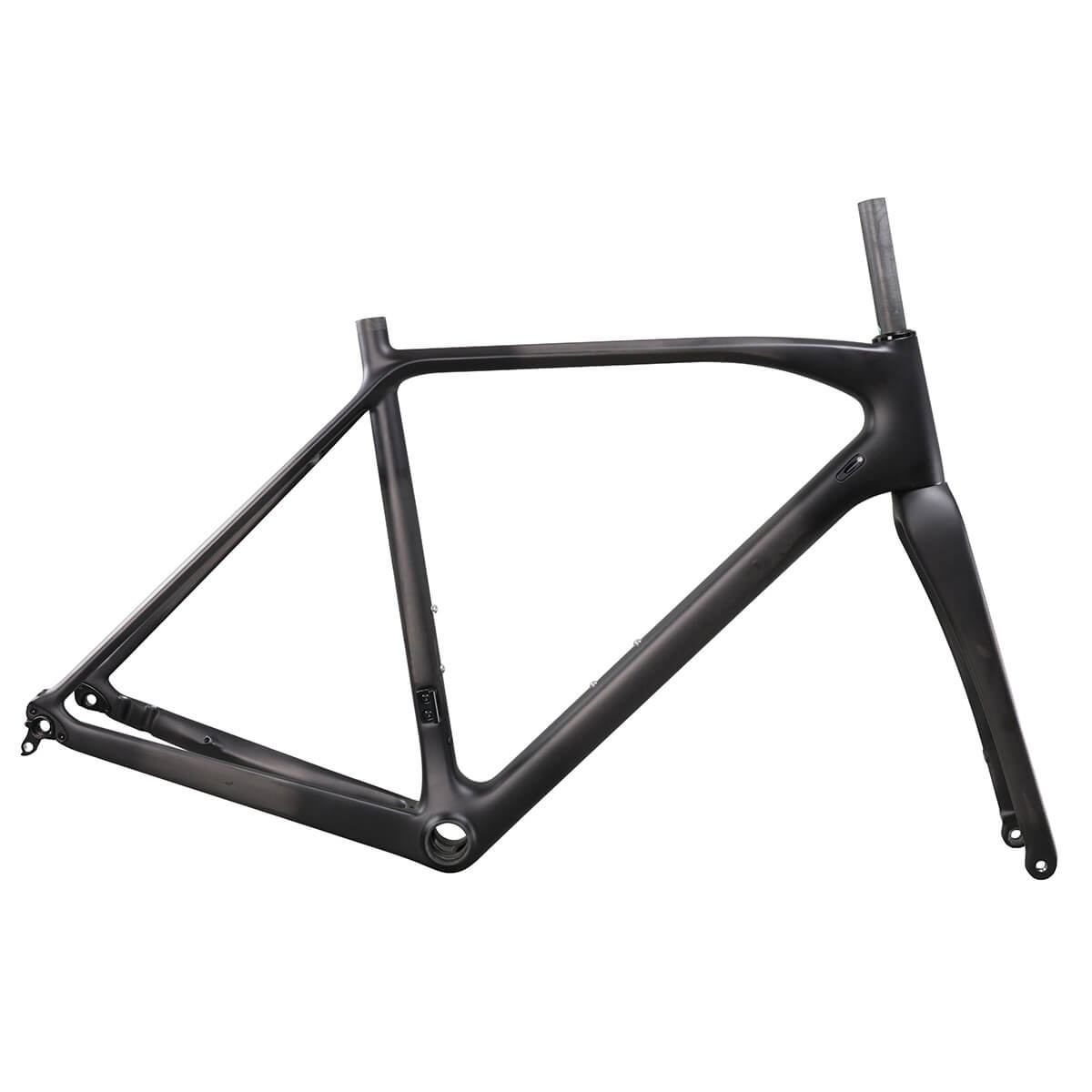

ICAN AC388 Carbon Aero Cyclocross Bike Frameset AC388 12x100, 12x142mm rear spacing Cyclocross Frame
ICAN AC388 Carbon Cyclocross Frameset Geometry
ICAN AC388 Carbon Cyclocross Frameset Size Recommendation
ICAN AC388 Carbon Cyclocross Frameset Front Fork Geometry

AC388

  • External cable routing frame
  • Cyclocross
  • BB86 bottom bracket
  • 27.2mm seat post
$630.00
$699.00
$630.00
Size: 49cm
Color: UD Matt
Subtotal: $630.00
10 customers are viewing this product

Extra Shipping & Tax

Fast Delivery

2-year Warranty

ICAN AC388 Carbon Aero Cyclocross Bike Frameset AC388 12x100, 12x142mm rear spacing Cyclocross Frame

AC388

$699.00 $630.00

AC388

$699.00 $630.00
Size: 49cm
Color: UD Matt

 Specification

Type New Cyclocross frame disc
    Frame  AC388
Weave UD Matt
  Material  Toray T700 carbon
Cable All internel
       Frame weight  1050±40g (53cm)
Fork weight 380±20g
   Headset       H373 1-1/8",1-1/2"
BB BB86
Sizes       49/51/53/55/57/60cm
Brake Disc Brake
Recommend Tyre Size 700*28~38C
Seatpost Size  27.2mm
  Front Spacing 100*12mm
Rear Spacing   142*12 mm
  Front and Rear Derailleur          Flat mount shimano,160/140mm



    49cm 51cm 53cm 55cm 57cm 60cm
A Top Tube Length 509mm 535mm 547mm 559mm 569mm 589mm
B Head tube length 115mm 125 mm 140mm 155 mm 170.0 mm 190.0 mm
C Seat Tube Angle 75.5 ° 74 ° 73.5 ° 74.25° 73 ° 72.5 °
D Head Tube Angle 70.5 ° 71.5 ° 71.5 ° 72 ° 72.5 ° 73°
E BB Drop 71 mm 71 mm 69 mm 69 mm 67 mm 67 mm
F Chain Stay 425 mm 425 mm 425 mm 425 mm 425 mm 425mm
G Wheel base 1006 mm 1008 mm 1016 mm 1022 mm 1025 mm 1032mm
H BB  to Frame Wheel 592mm 594 mm 601mm 606 mm 609 mm 616 mm
I Fork Length 400mm 400 mm 400 mm 400 mm 400 mm 400 mm
J Fork Rake 49mm 49mm 49mm 49mm 49mm 49mm
K Seat Tube Total Length 490mm 510 mm 530 mm 550 mm 570mm 600 mm
L Reach 369mm 376 mm 379mm 384 mm 387mm 393mm
M Stack 541 mm 554 mm 566mm 582mm 597 mm 618 mm
Frame Weight 1050g 1090g 1110g 1110g 1130g 1140g

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
