Alpha 86 - ICAN Wheels

Alpha 86 Pro

  • Clincher tubeless ready
  • 18.35mm internal rim width, 25mm external width
  • Pillar spokes
  • Recommended Tire Size: 25mm – 28mm
  • 1758+-20g
$540.00
$570.00
$540.00
Logos: Without logos
Subtotal: $540.00
10 customers are viewing this product

Extra Shipping & Tax

Fast Delivery

2-year Warranty

Alpha 86 Pro

Alpha 86 Pro

$570.00 $540.00

Alpha 86 Pro

$570.00 $540.00
Logos: Without logos

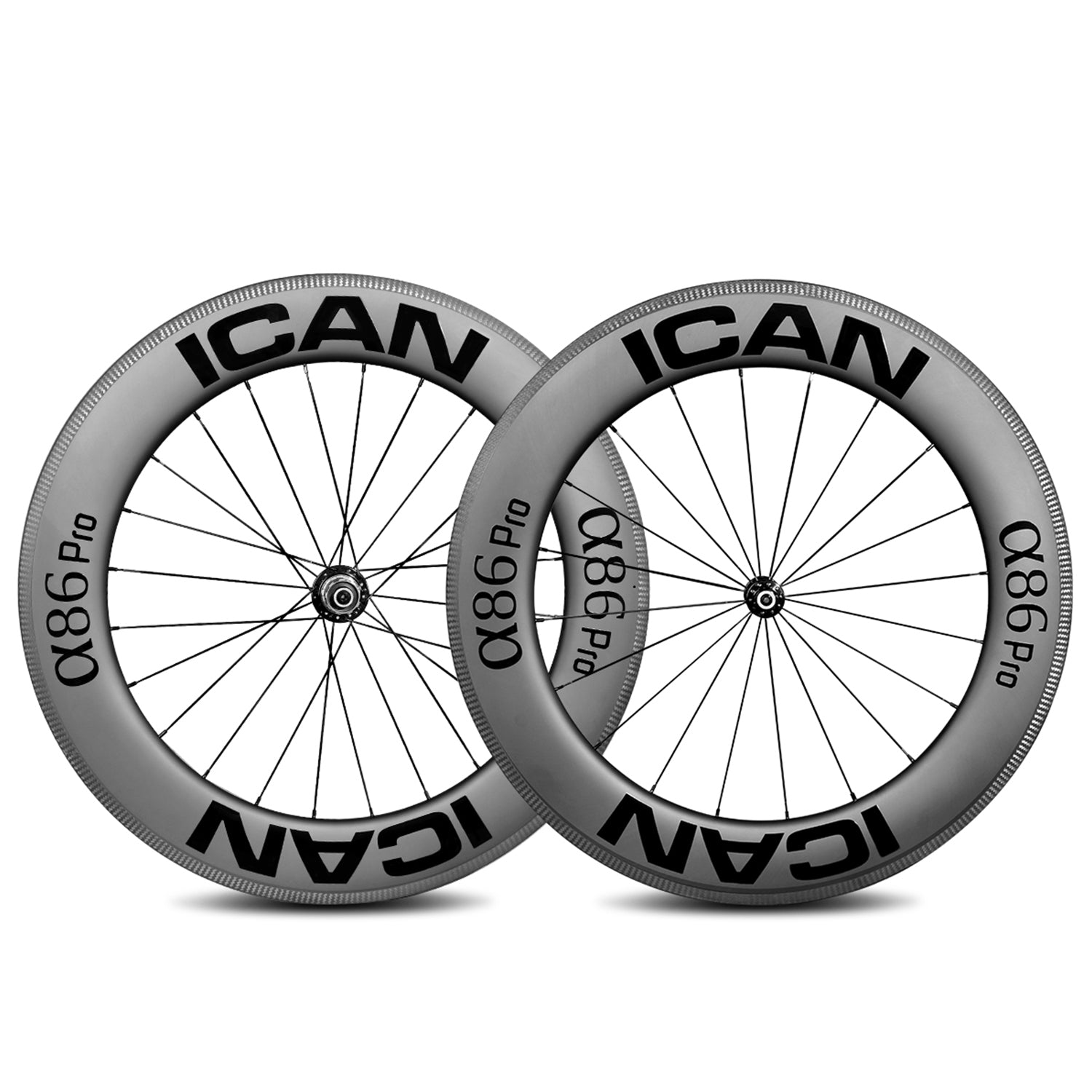

The Alpha 86 Pro is a wallet-friendly wheels designed for comfort and performance. It also provides good aerodynamic performance. It is constructed with Toray T700 and T800 carbon fiber, making it incredibly light without compromising rigidity. It's equipped with a durable Novatec hub, ensuring smooth, reliable operation.

  • Intended Use: Road, All-Road,Daily training wheels
  • Inner rim width: 18.35 mm
  • Light weight 1768+-20g
  • Recommended Tire Size: 25–28c
  • Tubeless Ready/Clincher
  • Cassette Compatibility:Shimano 10/11 speed



Specification

Type  Carbon Racing Bike Wheelset
Material Alpha Pro: Carbon Fiber Toray T700 & T800
Size  700C
Rim

 Finish: UD Matt
 Drills:20/24 Holes
 Width: External:25mm

        Internal :18.35mm

Depth  86mm
Profile  Tubeless Ready
Hub  Novatec Hub (A291SB-SL/F482SB-SL)
Spoke Pillar 1432 Spokes
Spoke Count  Front: 20   Rear: 24
Spoke Pattern Front:Radial
 Rear: 2-cross

Nipple  Alloy  Color: Black
Cassette Compatibility  Shimano 10/11 speeds
Wheelset Weight

Alpha: Total: 1758g (Front: 800g  Rear: 958g)

Brake Surface  3K Carbon Braking Track
Rider Weight Limit  232lbs / 105kg
Guarantee  2 years
Free

 1 set of skewer

Brake pads

Packing Size  81.5cm x 17cm x 65.5cm



One of the biggest bars to getting into triathlons and time trials is cost. That is why we created our Alpha 86 carbon fiber wheelset. These wheels will give both a standard road bike and a time trial/triathlon machine a considerable speed boost. They will help you slice through the air with ease. Even better is they will not take a huge slice out of your wallet.

To bring you an 86mm deep section aero wheel we have turned to Toray to use a mix of their carbon fibers. We use their T700 and T800 carbon fiber cloth. We use this mix as we have found it allows us to build you a stiff and strong set of wheels, that we can sculpt into a modern wide and blunt aero shape.

As well as doing this it allows us to keep the weight down. Because even if you are only after aero gains having a lighter set of wheels helps to make you feel better. To keep the wheelset comfortable, not something that is often said about 86mm deep rims, we have made sure that the rim is also tubeless-ready.

As you will be flying along the road, we have also upgraded the brake track. Our new brake track can withstand temperatures of up to 300° from our old base of 240°.

We have gone with Novatec F428SB-SL, and A291SB-SL sealed bearing hubs, and aero Pillar spokes to help keep the wheelset affordable. Both Pillar and Novatec, like ourselves, bring you high quality at a highly affordable price.

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
