AERO 35 Disc
- Clincher tubeless ready
- Asymmetrical design
- 21.5mm internal rim width, 29mm external width
- Sapim CX-Ray spokes
- Sapim Secure Lock nipples
- Road/gravel cycling/racing wheels
- Recommended Tire Size: 25mm – 28mm
- $655.00
$685.00- $655.00
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Extra Shipping & Tax
Fast Delivery
2-year Warranty
Coming unstuck downhill has never been fun. Now with disc brakes, you can safely bring yourself to a halt down massive Alpine descents. So it was only natural we popped our disc brake hubs on a set of super light AERO 35 carbon fiber rims.
The secret to getting disc brakes to work is a good contact patch. As our Toray T700 & T800 carbon fiber 35mm rims are wide and tubeless ready that should not be a problem. With an outer diameter of 29mm the rim will fit 25mm or 28mm tires perfectly, lower the pressure (you can get away with less pressure if you have jumped on the tubeless bandwagon) and now you will have some of the finest braking known to man.
As our AERO 35 rim is also aero shaped, you can be sure of a speed boost as you power through the flats to get to where the land goes a bit more vertical. Our Toray T700 & T800 carbon fiber layup has been engineered to be among the lightest available. You may though have an issue with your wallet still being heavy and weighing you down as our pricing is great.
To make sure that the weight stays down we have laced this carbon wheelset with Sapim CX-Ray spokes. These spokes are industry leading in weight and stiffness — the perfect match for our FL series wheels. To finish the wheelset off, we have fitted them on sealed bearing Novatec hubs.
We take pride in all of our products and as we feel this wheelset is industry leading we have given you an industry-leading two-year guarantee on our wheelsets.
| Type | Carbon Disc Wheelset |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim |
Finish: UD Matt Inner Width: 21.5mm |
| Depth | 35mm |
| Profile | Clincher Tubuless Ready |
| Hub |

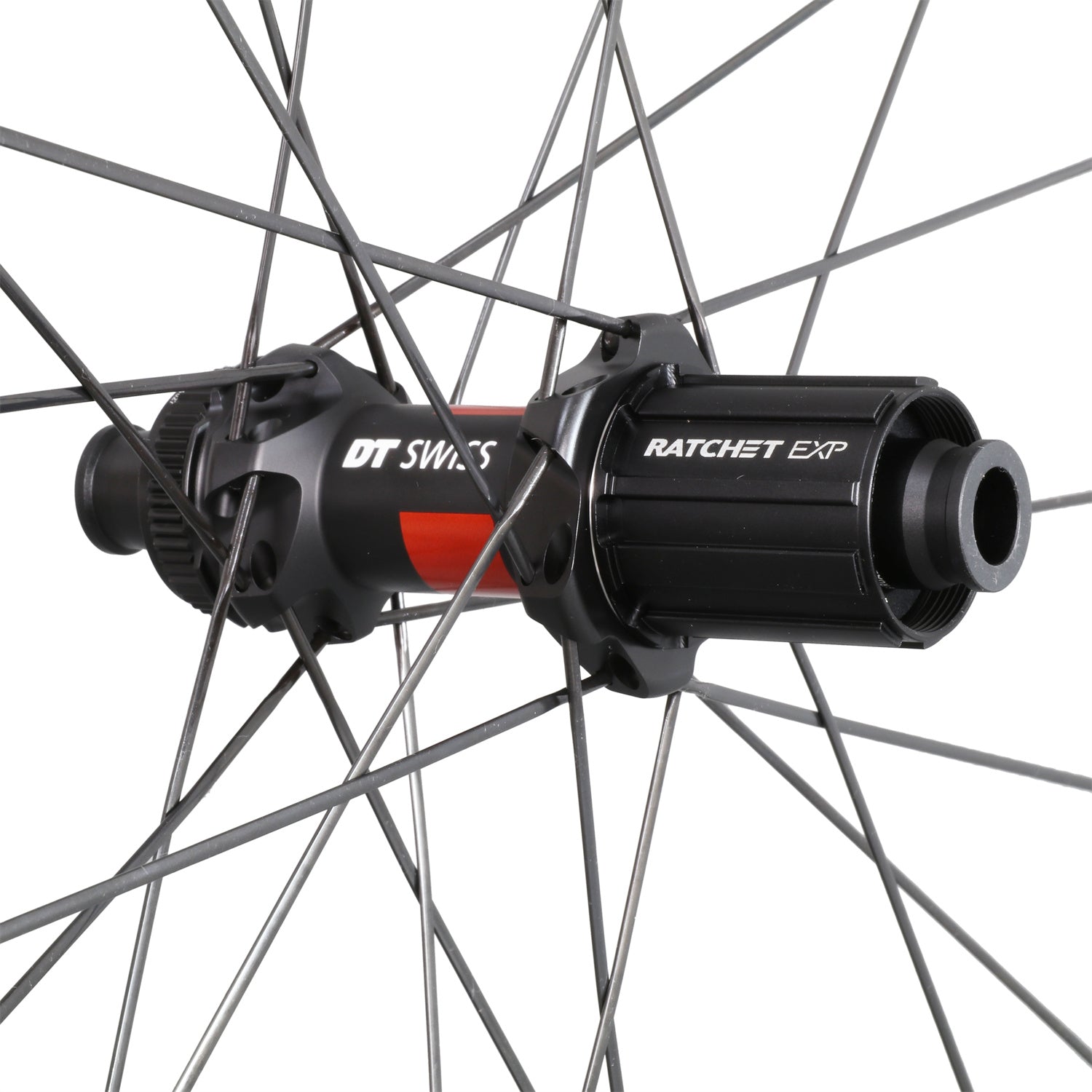

ICAN D01 / DT240EXP-36T Centerlock, 12x100/12x142mm |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 11 speed |
| Wheelset Weight |
ICAN D01: Total: 1359g Front: 608+-10g Rear: 751+-10g DT240EXP: Total: 1416+-20g Front: 640+-10g Rear: 776+-10g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-28mm |
| Rider Weight Limit | 100kg |
| Guarantee | 2 years |
| Free |
Valves Rim Tape |
| Packing Size | 81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
| STANDARD CLINCHER TIRE WITH INNER TUBE | TUBELESS TIRES | |
|---|---|---|
| ≤ 65 KG RIDER | 23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
| 65 - 75 KG RIDER | 23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
| 75 - 85 KG RIDER | 23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
| 85 - 95 KG RIDER | 23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
