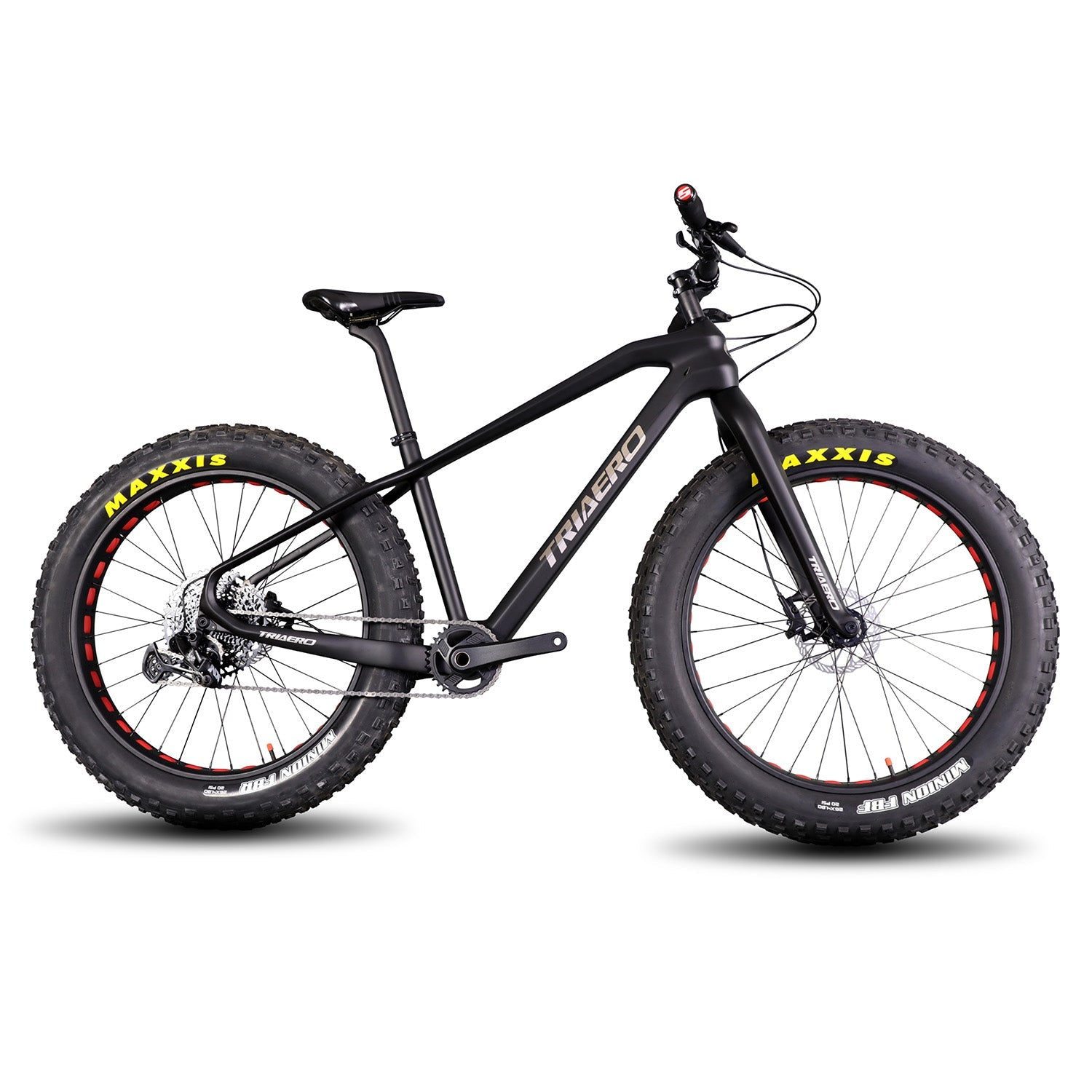

26er Carbon Hardtail Fat Bike SN02

  • 26ER hardtail fat bike frame
  • BSA100 bottom bracket
  • 197mm rear spacing
  • 31.6mm seat post
  • Sram Eagle NX groupset
£1,367.00
£1,880.00
£1,367.00
Size: 17 inch
Subtotal: £1,367.00
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

26er Carbon Hardtail Fat Bike SN02

26er Carbon Hardtail Fat Bike SN02

£1,880.00 £1,367.00

26er Carbon Hardtail Fat Bike SN02

£1,880.00 £1,367.00
Size: 17 inch



Specification

FRAMESET
Model: 26er SN02 carbon Hartail fat bike frame
Material: Carbon Fiber Toray T700
Size: 17/19 inch
BB: BSA (100mm)
Rear Spacing: 12x197mm
Fork: Carbon Fork 15x150mm

DRIVETRAIN
Groupset: SRAM NX EAGLE 12S
Brakes: DB LVL BLK L/F DIR 900
DB LVL SJ BLK R/R DIR 1900
Trigger Shifter:SL NX EAGLE TRIGGER
Rear Derailleur: RD NX EAGLE 12S
Chain: NX EAGLE 126LI PWR.LCK 12S SLVR
Cassette: PG1230 EAGLE 11-50T
Disc Rotors: 160mm ( front and rear )

Crankset: ICAN OEM CNC 32T, 170mm Arm Length
BB Wide: 100mm BSA

WHEELS
Front Hub: 150mm, Powerway Hub M74, 15x150mm , 32 Hole
Rear Hub: 197mm, Powerway Hub M74, 12x197mm, 32 Hole
Spokes: CN
Rims: Carbon, 90mm Wide, 20mm Deep, Clincher Tubeless Ready, UD Matt
Tires: Tires: Maxxis MINION FBR 26*4.0 inch, 20PSI
Please note the biggest Tires of the 17-inch size is Maxxis 26*4.0 inch, 19-inch size is Maxxis 26*4.8 inch


COMPONENTS
Headset: Integrated, Sealed Bearings, H373
Stem: ST35 35mm diameter, 50mm legth black matt Alloy
Handlebar: MTB Riser Handlebar HB35, 780mm*35mm
Seat Post: Full Carbon SP01 31.6 * 350/400mm
Seat Post Clamp: Carbon 34.9mm, CSC01-SL
Saddle: SD10 Saddle
Spacer: Carbon, UD Matt, SC002
Handlebar Grip: Sram Grip

WEIGHT
Complete Bike Weight:13.7kg ( Pedal not included )

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
